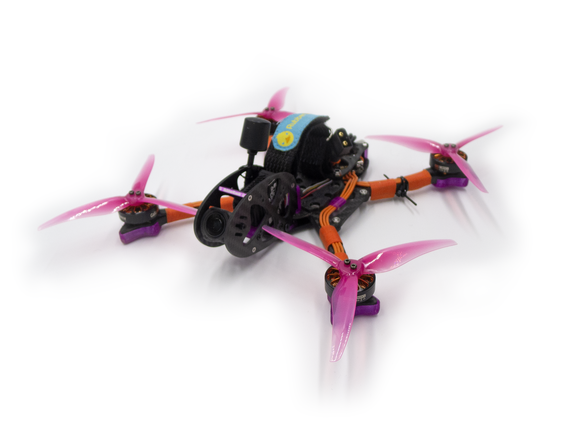

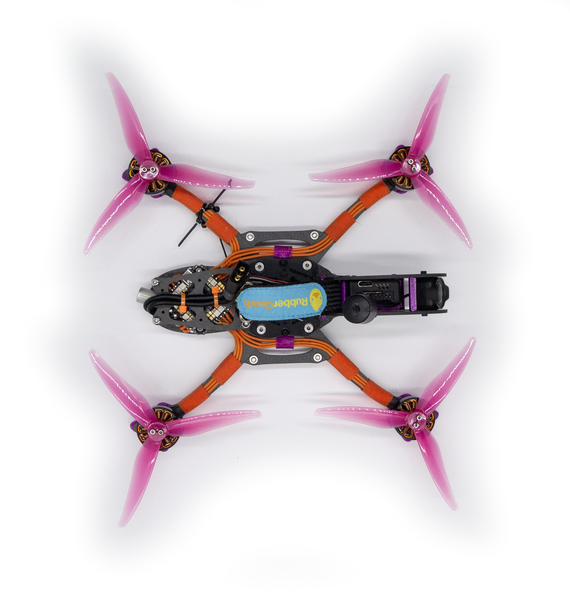

the Capybara

I love flying racing-rigs because of the insane thrust to weight ratio and crash resistance but I didn't like the Idea of cramming a crazy expensive video-system into it for freestyle flying (I still tried).
To get the best of both worlds we designed a lightweight frame that still features 6mm arms and offers solid cam and VTX protection.
The tail-section allows mounting a 25.5mm AIO between 10mm standoffs or a full 20mm or 30mm stack when using 20mm standoffs (both included in the frame-kit).
The frontend is suspended on a TPU-block to decouple it from vibrations and shocks from the main body and houses an O3 and the camera.
We braced the front- and tail-arms with carbon and every arm is dampened from its neighbours and the bottom-plate by a TPU-insert in the center.
To get an idea about the assembly have a look at Patricks build video.
